AEROSEA 3 USV
Small, Smart, Powerful
AEROSEA 3Main Features
ANDROID & WINDOWS
Android software for hydrological and bathymetric surveys.
LONG RANGE TRANSMISSION
Up to 10km 4K Video & Data Transmission
Extended Battery Duration
Up to 10 Hours of Uninterrupted Survey Operations
Fully Autonomous Navigation
Fully Autonomous Navigation for Seamless Mapping Operations
AEROSEA 3Tool All In One
The AEROSEA 3 is the new model from Aigaio RCB, offering the capability for underwater mapping with autonomous navigation over long distances.
Continuous Survey Operations
AEROSEA 3 provides a high level of autonomy, reaching up to 10 hours of continuous operation!
Flexible Integration
AEROSEA 3 can be purchased with the desired echo sounder pre-installed or delivered ready to integrate with the user's existing sensors.
AEROSEA 3Sensor-Ready for Advanced Surveying
AEROSEA 3 can be purchased with the desired echo sounder pre-installed or delivered ready to integrate with the user's existing sensors. Similarly, custom wiring can be included, allowing the vessel to accommodate existing GPS, GNSS, and RTK positioning systems. Additionally, it can be equipped with single-beam, multibeam, and side-scan sonar systems.

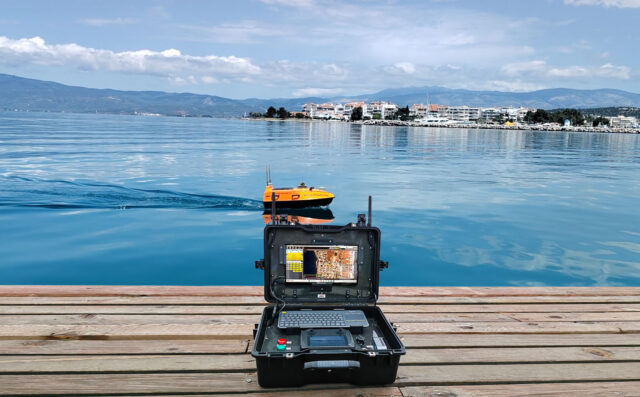

AEROSEA 3Real-Time Mission Planning & Telemetry Monitoring
The mission planning application runs on a base station laptop connected via a radio telemetry link, displaying the graphical position and progress of the vehicle over a map of the survey area. Battery voltage, current, and remaining capacity are monitored through this connection, utilizing GPS position and heading data available in real-time onshore via RF telemetry.

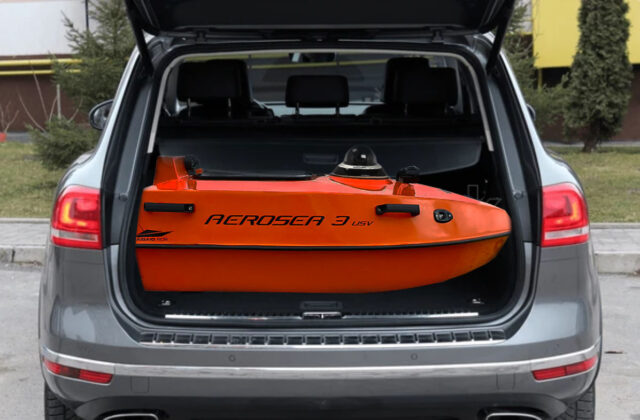

AEROSEA 3Versatile, Durable, and Easily Deployable for Any Environment.
It can be used in ports, mines, wastewater treatment plants, rivers, polluted lakes, reservoirs, etc. It is built with high-quality materials and components and is easily disassembled, while its compact size and lightweight design allow for easy transportation and deployment.
Applications
MAPPING - SURVEYING
Underwater mapping is a crucial tool for studying and managing marine areas, providing accurate and reliable information on hydrography, coastal morphology, and seabed structures.
ENVIRONMENTAL MONITORING
AEGEAN USVs are equipped to collect data on water temperature, marine environmental quality, pollutant presence, and biodiversity conditions.

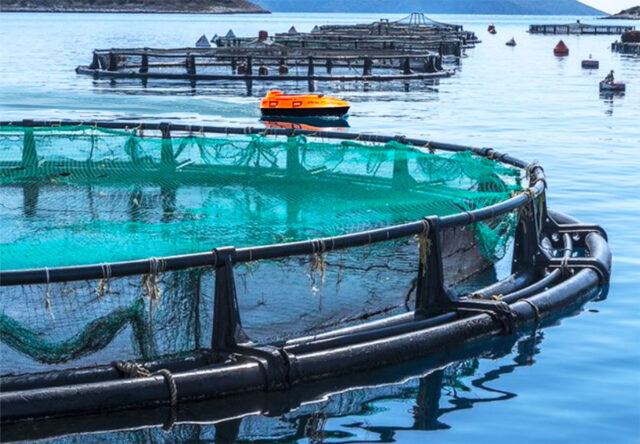

AQUACULTURE
AEGEAN USVs provide advanced solutions for automated surveillance and analysis of aquaculture facilities, helping to reduce operational costs and improve efficiency.
SEARCH & RESCUE
In search and rescue operations, AEGEAN USVs provide exceptional tools for a rapid and effective response to maritime emergencies. Our vessels are designed to reach remote and hard-to-access locations, even in extreme sea conditions.
AEROSEA 3 Specifications
- Typical Survey Speed……………………………………………….3 kts (1.5 m/s)
- Top Speed ………………………………………………………………….. 5 kts (2.5 m/s)
- Hull Length ……………………………………………………………….. 105cm
- Hull width……………..…………………………………………………….. 80 cm
- Battery Endurance at Survey Speed …………………..10 hrs
- Battery Endurance at Full Speed…………………………. 5 hrs / 27km
- Payload ……………………………………………………………………….. 34 kg
- Motor Power……..…………………………………………………………2 X 9kg of thrust
- Motor …………………………………………………………………………… Outboard Brushless Thruster
- Hull Material ……………………………………………………………… UV resistant Fiberglass
- Steering ………………………………………………………………………. Differential
- Battery …………………………………….……………………………………. Li-Ion
- Data Telemetry Frequency …………………………………..2.4 GHz/ 5.8 GHz
- Remote Antenna ………………………………………………………Omnidirectional
- Remote Range …………………………………………………………. 1 km (+10km optional – Unlimited on 5G)
- GPS Auto Pilot Unit………………………………………………….. Including
- Video communication……………………………………………. Long range FPV
- Camera…………………………………………………………………………….4K
- Satellite system…………………………………………………………….GPS, BDS, GLONASS, Galieo
- Automatic avoid obstacles system ………………….. Optional
Depth Sounder Transducer
- Type……………………………………………………………………………………Single beam, 200 kHz
- Range……………………………………………………………………………… 0.15 to 200 m
- Resolution…………………………………………………………………….. ±0.01 m + 0.1% x D (RTK)
Innovation on the water, safety in the mission!
