AEROSEA 1
MAX USV FOR MAX MISSIONS
AEROSEA 1Main Features
ANDROID & WINDOWS
Android software for hydrological and bathymetric surveys.
LONG RANGE CONTROL
Up to 10km 4K Video & Data Transmission
Extended Battery Duration
Up to 20 Hours of Uninterrupted Survey Operations
AUTOMATIC OBSTACLE AVOIDANCE
Safe navigation by detecting and avoiding obstacles in real-time

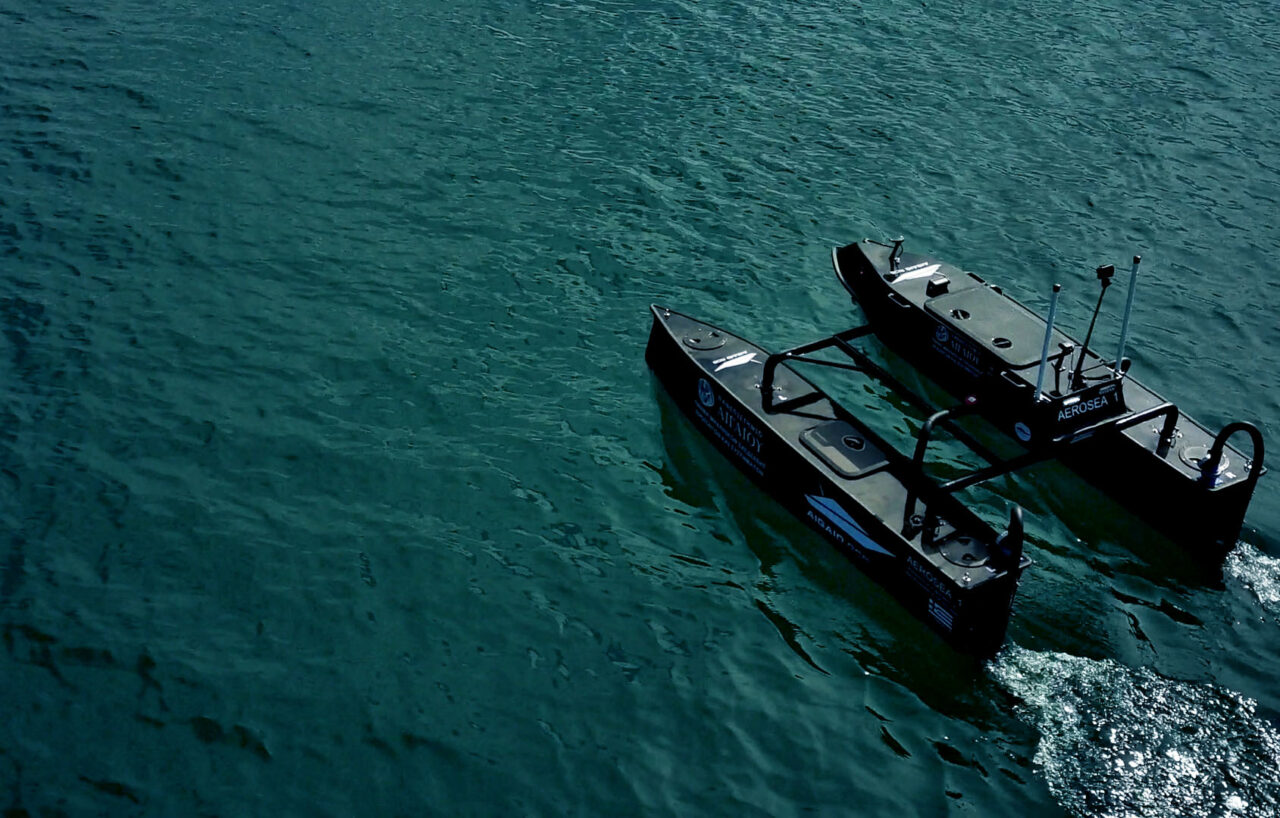

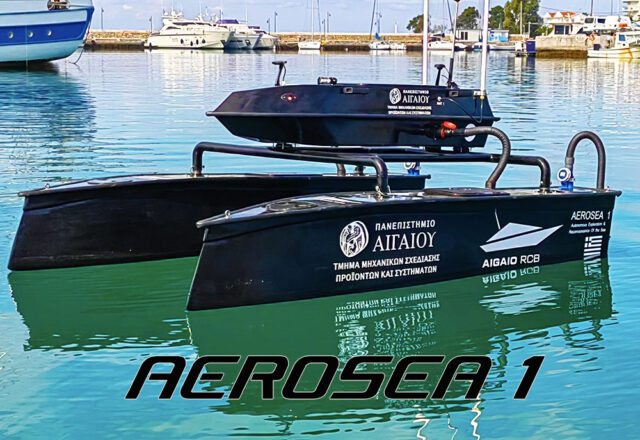

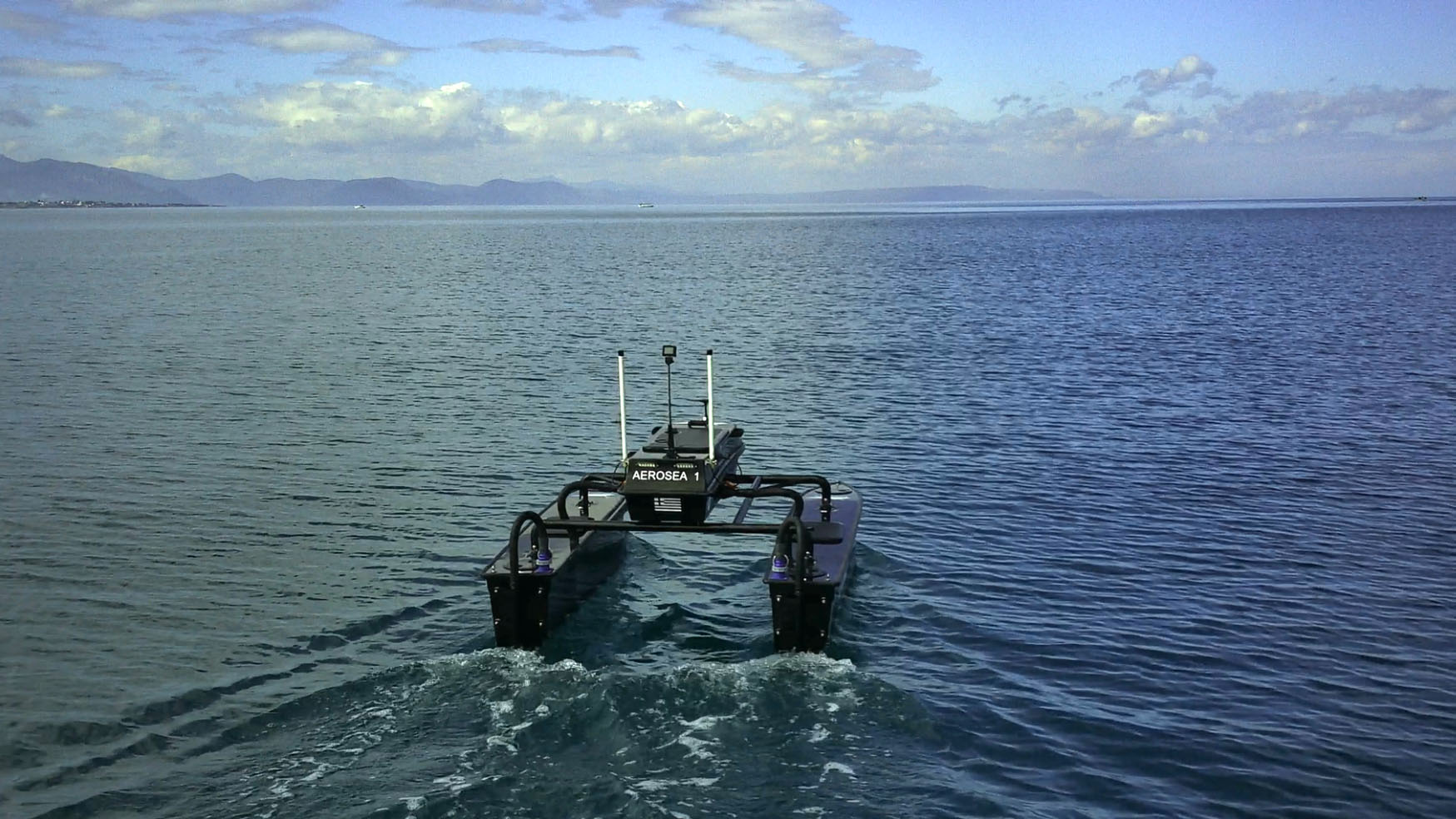

AEROSEA 1
Advanced Autonomous USV
AEROSEA 1 was entirely developed by AEGEAN USV for the University of the Aegean as part of the European Research Project CREXDATA (Critical Action Planning over Extreme-Scale Data). It will be utilized by the Intelligent Transport Systems Research Laboratory of the Department of Product and Systems Design Engineering at the University of the Aegean.
AEROSEA 1Multi-sensors
AEROSEA 1 can be delivered with a pre-installed echo sounder or ready to accommodate the user's existing sensors. Additionally, it can be equipped with custom wiring to support GPS, GNSS, and RTK positioning systems. It also has the capability to integrate single-beam, multi-beam, and side-scan sonar systems, providing high-precision mapping and surveying capabilities.
AEROSEA 1 Applications
MAPPING - SURVEYING
Underwater mapping is a crucial tool for studying and managing marine areas, providing accurate and reliable information on hydrography, coastal morphology, and seabed structures.
ENVIRONMENTAL MONITORING
AEGEAN USVs are equipped to collect data on water temperature, marine environmental quality, pollutant presence, and biodiversity conditions.
AQUACULTURE
AEGEAN USVs provide advanced solutions for automated surveillance and analysis of aquaculture facilities, helping to reduce operational costs and improve efficiency.
SEARCH & RESCUE
In search and rescue operations, AEGEAN USVs provide exceptional tools for a rapid and effective response to maritime emergencies. Our vessels are designed to reach remote and hard-to-access locations, even in extreme sea conditions.
AEROSEA 1 Specifications
- Typical Survey Speed……………………………………………….3 kts (1.5 m/s)
- Top Speed ………………………………………………………………….. 7 kts (5 m/s)
- Hull Length ……………………………………………………………….. 250cm
- Hull width……………..……………………………………………………..160 cm
- Battery Endurance at Survey Speed …………………..15 hrs
- Battery Endurance at Full Speed…………………………. 7 hrs
- Payload ……………………………………………………………………….. 110 kg
- Motor Power……..…………………………………………………………2 X 100LBS of thrust
- Motor …………………………………………………………………………… Outboard Brushed Thruster
- Hull Material ……………………………………………………………… UV resistant Fiberglass
- Steering ………………………………………………………………………. Differential
- Battery …………………………………….……………………………………. LiFePo (Li-Ion optional)
- Data Telemetry Frequency …………………………………..2.4 GHz/ 5.8 GHz
- Remote Antenna ………………………………………………………Omnidirectional
- Remote Range …………………………………………………………. 5 km (+10km optional – Unlimited on 5G)
- GPS Auto Pilot Unit………………………………………………….. Including
- Video communication……………………………………………. Long range FPV
- Camera…………………………………………………………………………….4K 360° video
- Satellite system…………………………………………………………….GPS, BDS, GLONASS, Galieo
- Automatic avoid obstacles system ………………….. Optional
Depth Sounder Transducer
- Type……………………………………………………………………………………Single beam, 200 kHz
- Range……………………………………………………………………………… 0.15 to 200 m
- Resolution…………………………………………………………………….. ±0.01 m + 0.1% x D (RTK)
Price: Contact us
Innovation on the water, safety in the mission!
